Is your goal really a gaol?

There is a perception that model railways, unlike other modelling hobbies (with the possible exception of slot-car racing and its more recent digital descendants) is not so much about individual models, as about layouts. It is true that many engines are modelled in their own right, and put on display shelves, and the same is true once in a while for carriages and wagons, but generally speaking, if you are modelling railways, then you need a layout because, well, it will have a railway on it.

This leads to some interesting consequences. For those who are concerned with the overall layout, then they are happy with the overall composition, and indeed may simply want a setting on which to run model trains. If you pick up the “mainstream” magazines, you will see examples of this, each with varying degrees of realism. But for many, a layout is the ultimate goal, and if space is not available for one, then maybe a micro-layout (less than 4 square feet in area) can be built for a shelf somewhere, or stock acquired, assembled and built towards that future date when maybe the kids leave home and a large room becomes free. The example above, East Lynn, is a rare exception to this rule. It was built for exhibition purposes, and everything you see in the photo was built by one man (Trevor Nunn), mostly from scratch. So here’s a thought.

Maybe a layout is the ultimate gaol, not the ultimate goal we are often led to believe?

This thought came to me – and sorry about that terrible play on words (which came about serendipitously* by a typing error on “ultimate goal”) when I was reviewing some of my modelling activities of late. And before you ask what activities they may be, let me answer the point for you: not much to show for the past 10 years or so. This has partly been due to the usual matters of growing family, growing job demands, etc, all leading to growing tiredness, but let’s be honest. That is just an excuse. I have spent plenty of time in front of the television, a computer, or just doing not much in an armchair. I have had time, and sometimes I quite possibly had the energy, but a kind of ennui has crept in, and it is all because of one thing: a layout.

Yes, a layout: supposedly what railway modelling is all about.

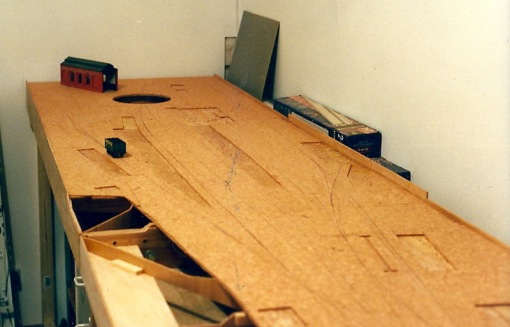

I had one, twenty years ago. I gave it to a friend for him to use as a test track to try out S scale, because I couldn’t be bothered to rebuild it and it seemed a shame to throw it on the tip (at 10′ long, it exceeded my available space by 18″, so it wasn’t set up at home). He did rebuild it – the station platform, the bank at the back of the layout and the baseboard surfaces on the original station boards are all that remains of the original creation – often using the materials carefully taken up. This was particularly true of track components, and one or two structures such as the goods shed. The layout, now called “Llanfair“, is still going – you can see it at Swindon on September 10/11 – but the (re)builder died just before Christmas. My idea had been to build a simple layout (all of 4 turnouts!) on which to run some second hand rolling stock (one engine, 9 wagons and a brake van) until I had built engines and stock more inclined to my then core modelling interests. As an idea it was fine, but I tried out some techniques with track building that were different to my usual order of construction, and not all of them worked out for the best. Unfortunately, whilst in hindsight this was obvious within 20 minutes of starting to lay the track, I stupidly persevered and had no end of trouble. (I followed the advice of a good friend, who always laid his sleepers and ballast at the same time. It worked well for him, but not for me. I used too much glue, sleepers moved around, and Woodlands Scenics fine cinders ballast got under some sleepers, creating an uneven base. I should add here that there is nothing wrong with the technique nor the materials, just my application of them. My usual method is to get the track down, tweaked, tested and wired before any thoughts of ballasting come along.)


So, for twenty years I have attempted to come up with a layout design which worked for me. I did, in fact, do this very quickly and even got as far as making the baseboards and cutting, staining and laying all of the sleepers and timbers, when I discovered that I had made a mistake in the construction of the light weight boards. I was using 6mm ply, with cross bracing, etc. That was fine, but when I laid the tops, I put them on concave rather than convex, so rather than the middle being pulled down to the longitudinal strut I had thoughtfully included, the middle pushed this strut downwards whilst the glue set – white glue is a pretty good lubricant until it has set. When I came to lay the rails, I found that there was a peak at each baseboard joint. That was a week’s vacation wasted! It was almost certainly recoverable, but in truth, I was having second thoughts about it. To run a reasonable service, it needed far more engines and coaches than I had. (I haven’t mentioned wagons as building these is always a pleasure.) I found the prospect of a layout and all the stock I had to build daunting, so I kicked a few ideas about, tried out a wagon or two in “Scale 7”, and built an open wagon to 1:32 scale. Of course, some would simply see this as a set of projects within a larger plan, but 15 years ago, I was 15 years younger and didn’t want to wait until I was in my 50s to have all that! (Instead of which I have a lot less to my name than if I had got on with it, of course.) But it is these wagons that I want to talk about.

I decided that for a variety of reasons (principally the lack of the easy mental arithmetic I was used to with S scale, I mean, 7mm to a foot? What does that make a scale inch? 23 thou? Oh come on. 1:43.4527… Oh dear. No logic to this) that having built a couple of “quick, cheap and simple” wagons to Scale 7 standards, it was not what I was looking for. And they weren’t as quick, cheap or simple as I thought. Once I had provided compensation, sprung buffers (on the kit which had plastic mouldings only) interior detail, and filled the gaps in the corners, I realised I had saved little time using the kits over starting from scratch, which was another disincentive.


So I turned to gauge 1, or at least, to the 1:32 variant of it. (And a note to the NMRA: this is not “G scale”. G scale is – or was – clearly understood as models of metre gauge prototypes to a scale of 1:22.5 or thereabouts running on Gauge 1 track. Everyone in the world – including the USA – knew and understood this. Apart from the NMRA.) Linearly, this is twice the size of S, but actually 8 times the volume, so models have real presence, as the placing of an S scale body inside a gauge one body (identical prototypes) makes clear.

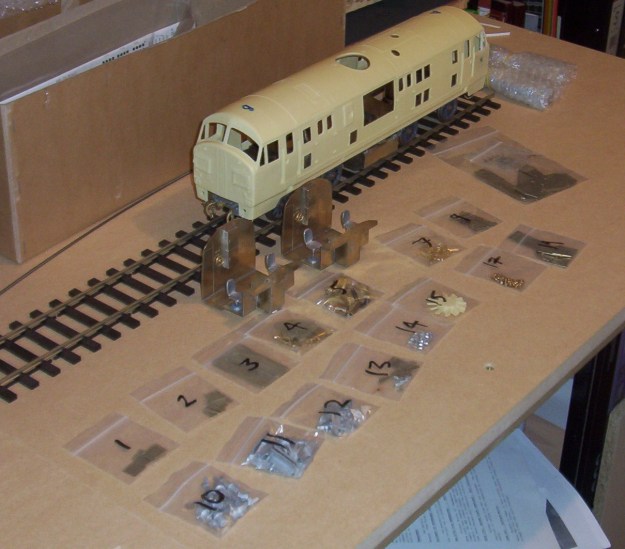

Like many, I was drawn to the scale on seeing some of Fred Phipp’s wonderful Gauge 1 diesel engine kits (and made a start on one – I got as far as fitting all the grilles, using superglue which I cannot abide. A few years later they fell out! I used too much glue.)

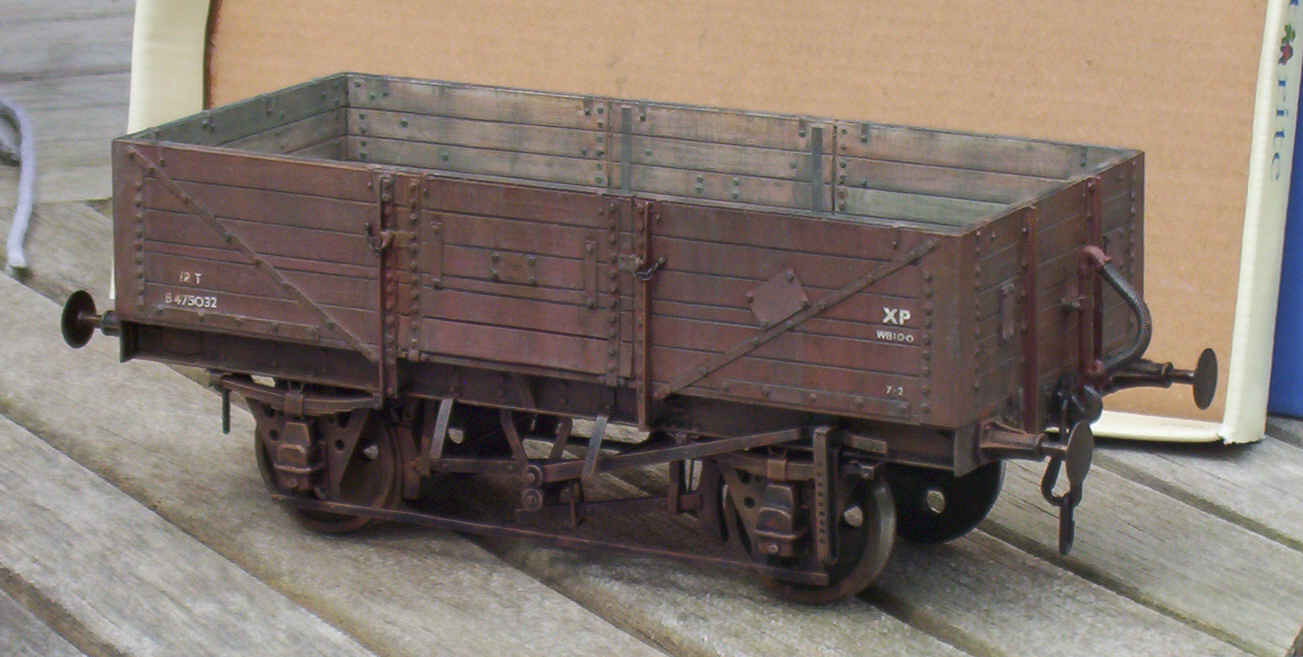

I decided to model British Rail in the “early blue” era, where the corporate image was asserting itself, but the railway was still shaking off practices handed down almost since the days of the Liverpool and Manchester Railway 140 earlier. With thoughts of a small “shunty plank” I decided to start on a wagon, to get a feel for the scale. Using mostly styrene sheet, with a few castings, it progressed in fits and starts. Basic body up on its wheels fairly quickly, then the underframe details. I couldn’t get wheels to the published “finescale” standards at the time, so I turned down some rather coarser wheels to true scale dimensions. Then nothing much for several months, then I added the ironwork details and representations of bolt heads on both ends and one side. Then nothing for another 9 months. Finally I finished it off – it took all of 45 minutes, I think, and started painting it. Undercoat of acrylic red for the most part, white for the interior, then Humbrol paints: 113 for the body, matt black 33 for the underframes, and some 0 scale decals for the lettering, courtesy of my father-in-law.

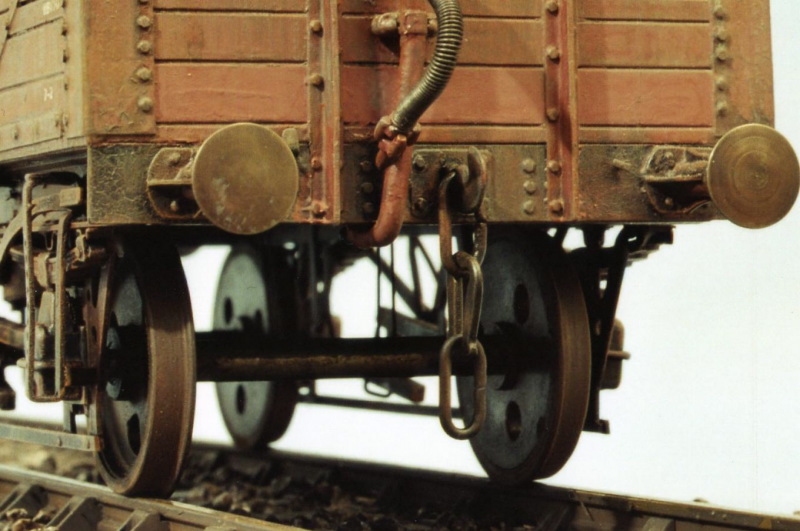

Then the weathering started. This was nothing more than a series of washes, again Humbrol, using the body colour, a dark grey (“tarmac”, I think) and on the unpainted wooden interior, a couple of washes of a cream colour to make the wood pale rather than white, and one of a red, to add a little warmth. The final wash was some “Metalcote” gunmetal over the whole thing. This brought out the relief detail, and also meant that some final dry-brushing would burnish the finish. At the time, Barry Norman lived relatively near, and a small group of S Scale MRS modellers used to meet up for a curry every so often, and he happened to see it, took it away for some pictures, and I was surprised to see it given prominence in MRJ issue 160.

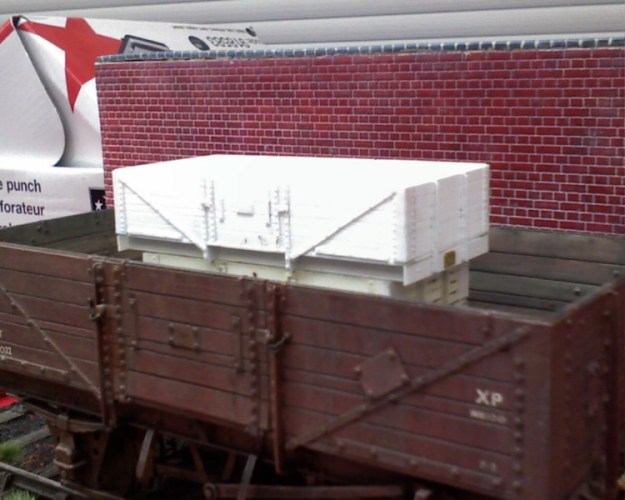

I also amended some of the omissions and errors (couldn’t do much about the fact that the model was shorter than it should have been and the wheelbase was off-centre!) on a recently introduced RTR model. The white bits are the additions, and you can’t see all of them!


In the end, I made a new underframe for it, but it was never finished as I wondered what was the point in in all this when it was still shorter than it should have been:


I also built an excellent new kit for a “private owner” coal wagon – the painted model presented in MRJ issue 175 was not my work, but that of the talented Adrian Marks. This was made clear when submitting the photos (the unfinished model photos were of my work), but my request for a correction was never put into print.

So, what of the gauge 1 layout? Well, it isn’t going to happen. But I built a small display stand for the wagon, using a piece of ¾” board and a few materials. That is it: 100 square inches of layout! And the great thing is, that’s all it needs to be.


This has made me realise that once in a while, building a single item in another scale may be enough to lift any clouds of indecision (analysis-paralysis over layouts) and it can stand as a model in its own right: there doesn’t have to be more.




* So look it up, including the etymology. That goes for all those who mis-use it, too!

Fear of change?

Chris Mears has made an interesting post – not that he does any other sort – picking up on discussions about what it would take for P87 to become established in North America.

My understanding is that “code 64” wheels and P87 wheel and track components are available for freight and passenger cars and diesel engines, but steam is a different matter. Also, it isn’t just about the wheels and the track: with scale wheels, the truck frames can – and arguably should – be brought slightly closer together. In a reply to Chris’s post, I touched on the fact that what it needs is for someone to actually get on and do it. The biggest obstacle seems to be fear of becoming a “lone wolf”, unable to run stock on friends’ layouts and vice versa. That is a poor excuse, as most of us have more equipment than we need, so why not have a few extra items to the other standard? This enables the P87 modeller to run finely detailed engines elsewhere, and encourages the H0 modeller to have a go at P87. For passenger and freight cars, it may be as simple as having a few spare trucks and swapping them over now and then.

I can think of several possible subjects which be ideal candidates for a reasonable P87 layout that would not be too demanding, yet interesting enough once built to enjoy operating them. Some are real, some are models, and some are inspired by the approach taken to modelling a real location. All bar one have relatively few turnouts and require little in the way of equipment: if modelled in the diesel era (which might be stretching things a little for a couple of the suggestions) then re-wheeling would be neither expensive nor time-consuming.

The obvious candidate would be Port Rowan, or Port Dover: already done in S as we know, but in the same space a model of Port Rowan station could be modelled more or less to scale length, with a longer tail track than Trevor Marshall could accommodate.
Another prototype-based model line which lends itself to adaptation for a P87 first layout – not least because it can be built in a modular fashion of discrete scenes, as confidence builds up, is James McNab‘s Grimes Line. (Yes, two links: one for the blog, the other for the site)

A couple of Eastern Seaboard prototypes come to mind, partly because I have already mentioned them on my own blog, are the North Stratford RR and the Edgemoor and Manetta.

For a trio of Proto-freelance layout ideas, two small and one moderate – and the small layouts could be connected to the moderate – then I think there is serious potential in some (or all, if you are brave enough!) of Mike Confalone’s Allagash Railroad. The rickety track and backwoods nature of what is now the Andover branch is a great starting point (the video demonstrates the rapid starts and stops of an Alco RS3, together with DCC sound). The original “Woodsville Terminal” layout, being a long, thin shelf, is relatively straightforward to fit into a house, or as a portable layout built in sections: UK practice would fit this onto four sections 48″ long, pair for storage face-to-face. The Regis Paper mill at New Portland is anther candidate for a small but satisfying start in a limited space. But New Sharon Junction, with the branch and the yard, wold make a great centre-piece for a moderate layout in P87, especially if there were a few yards of carefully crafted scenic running either side of the main station, and if there is room for the branches for pulp wood (off the “Atlantic” branch on the plan) and the paper mill (as is, coming off Carrabassett Junction) – indeed, one could supply the other. Staging at each end for a small number of trains would provide for a very satisfying scheme, capable of leisurely solo-operating (one train at a time) or a handful of friends coming round for a full-session with trains on the main, the branches, and a switch job in the yard. He has published some e-books, available from the MRH site, which I can thoroughly recommend (usual disclaimer).

Finally, what about Ryan Mendells’ Algonquin Railway? A perfect example of a layout design which could be used for a P87 layout.

The only thing a P87 requires more of than a “standard” H0 layout is time: a few hours extra to build the turnouts and plain track (if ready to lay flexi is not acceptable – it can always be replaced, piecemeal, at a later date) and a bit more time putting in new wheelsets. But even the latter is good practice, standardising on a single tyre profile is the first step to better running and using P87 sorts that out – otherwise, it is better to standardise on a single manufacturer and make sure the track matches it (so doing it properly probably requires hand-built – or at least hand-tuned – turnouts anyway). All the extra detailing is likely to be of interest to anyone prepared to consider P87 in the first place.

The rewards are immense: a railway that looks and runs like a real one.

So, what is really holding back P87? I suggest inertia, not of the physical kind, but of the psychological variety.

Shortline Inspiration 2: the Edgemoor and Manetta

This line in deepest South Carolina is a little gem, and thanks to Chris Ellis, editor of Model Trains (now, after various name changes, Model Trains International) is quite possibly better known in the UK than in its home country! It featured as long ago as 1980, with all 6 turnouts of the line (plus the interchange connection to and owned by the Seaboard Air Line, Atlanta Division) and a somewhat compressed plan. Although I can see the reasoning behind the latter (the plan would fit onto two shelves in the corner of a room, taking up 7′ x 7′, in H0) I feel that the compression goes too far and prototypical operations would be hard to replicate, particularly at the interchange. With Chris’ permission, the plan – along with a later version by Giles Barnabe for N scale – has been reproduced on RMWeb. (Click to open up a link.)

The prototype was a very short, short line about 2.3 miles long which ran from an interchange with the SAL at Edgemoor to the Mannetta mills at Lando (Manetta Mills owned the line). The line even managed to have a plate bridge over a river (with timber trestle approaches, which collapsed at least once!) In short, it had one of many of the features modellers look for.

E&M number 5
Trains latterly consisted of a Porter 0-4-0 tank engine, hauling up to two freight cars at a time! Freight was primarily coal in, and blankets out, generally requiring hoppers and boxcars. Trains were worked with the engine at the Lando (terminal) end: pushing up the hill to the interchange – sometimes pausing half-way to pump up more air – and pulling down to the mills. When delivering coal, the engine was trapped at the end of the coal ramp spur whilst the hoppers were emptied; coal was also delivered to the boiler house in the same manner. The engine itself was coaled by shovel, from a roadside truck whilst standing on the loopneck at the end of the line. The railroad also owned a flat car which never left Lando: once the day’s switching and shifting was done, it was left between warehouses separated by the tracks at the start of the loop to act as a platform allowing access between them! It had to be pulled out of the way at the start of the raiload shift, and put back at the end. The mills worked three shifts in 24 hours, but the railroad only operated for one of them. At the interchange, empties and deliveries were dropped off by passing ACL/SAL freights, which collected loaded cars and empty hoppers which had been left on the house track at Edgemoor. In earlier times there was even a passenger service, and the line ran with 0-4-4T and 0-4-2T power.

As big as a train can get on the E&M!

It was the last steam-worked non-tourist line in the USA, but operations ceased in July 1975 when the engine failed its boiler inspection. Trucks took over, and that was more or less that, although the loco was still there nine years later!

With a requirement of a small loco (it might be possible to use the old Rex loco as a starting point in S – anyone have one for sale?), half-a dozen boxcars, a couple of coal hoppers a gondola, a flat car and maybe a tank wagon, this would not be a difficult line to equip. I have sketched out an idea for a 12’8″ x 8’10” spare room, designed to feature most of the features of the line. Although I have had to come down to 42″ radius curves, I have used number 8 turnouts as even with a small engine and 40′ long freight cars, this simply looks better than anything tighter. If anyone wishes it, I can supply the plan as a Templot file, or – if you let me know the paper size – as a pdf for printing. There were warehouses both sides of the loop, the spurs served the coal traffic.

edgemoor_and_manetta

For further reading search out the following magazine articless:
Jim Boyd, “The Last Steam Shortline”, Railroad Model Craftsman, March 1972
Chris Ellis, “The Edgemoor and Manetta”, Model Trains, May 1980
Giles Barnabe, “Edgemoor and Manetta Revisited”, Scale Model Trains, May 1986
Giles Barnabe, “Edgemoor and Manetta RR”, Model Trains International, Issue 101
Finally, the Arcadia Publishing book, “Lando”, by Pual Scott Williams of the Lando-Manetta Mills History Center (2007, ISBN 9780738552682) has a lot of information, including the Sanborn Insurance map of the Manetta Mills and railroad tracks at Lando.
